ConnectVend

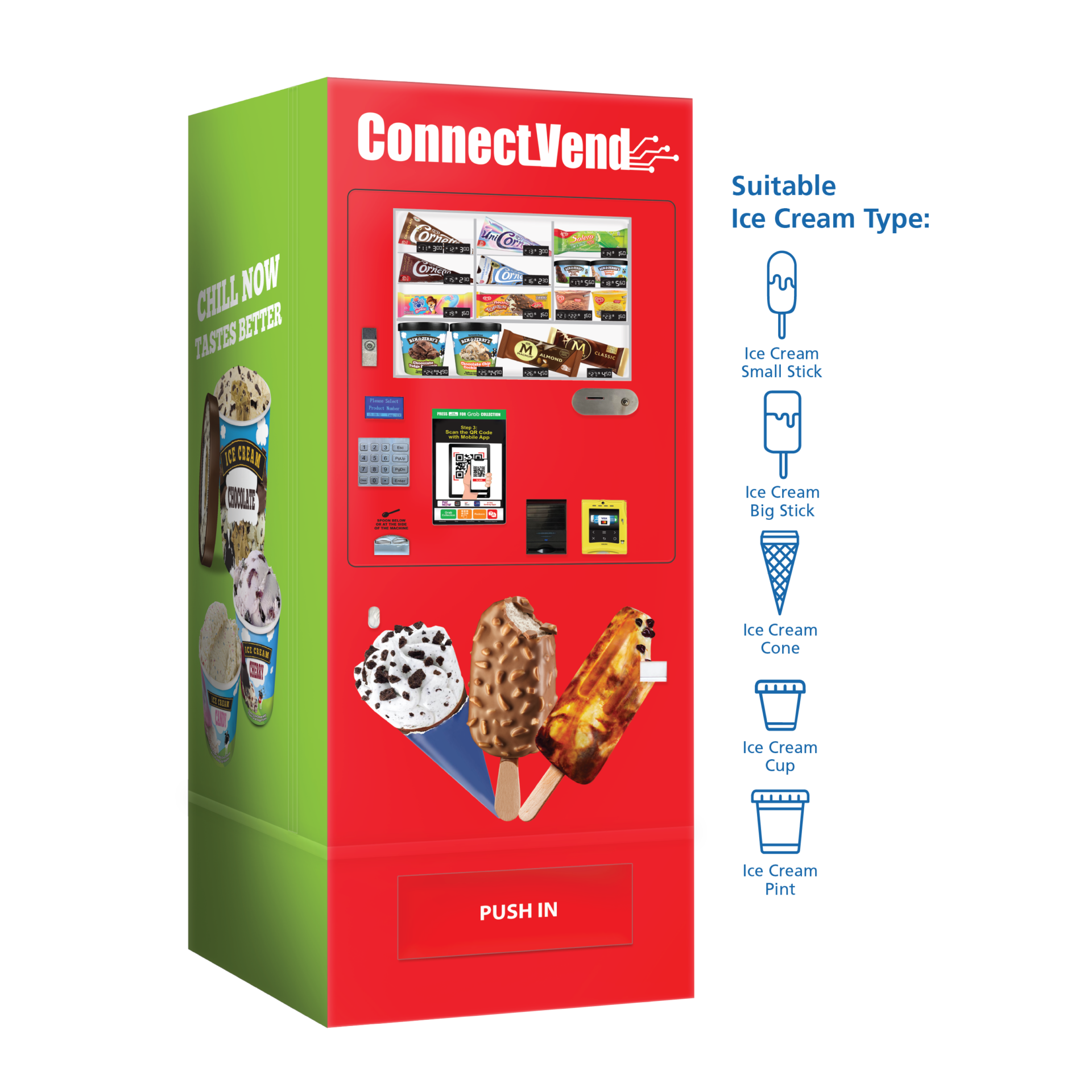

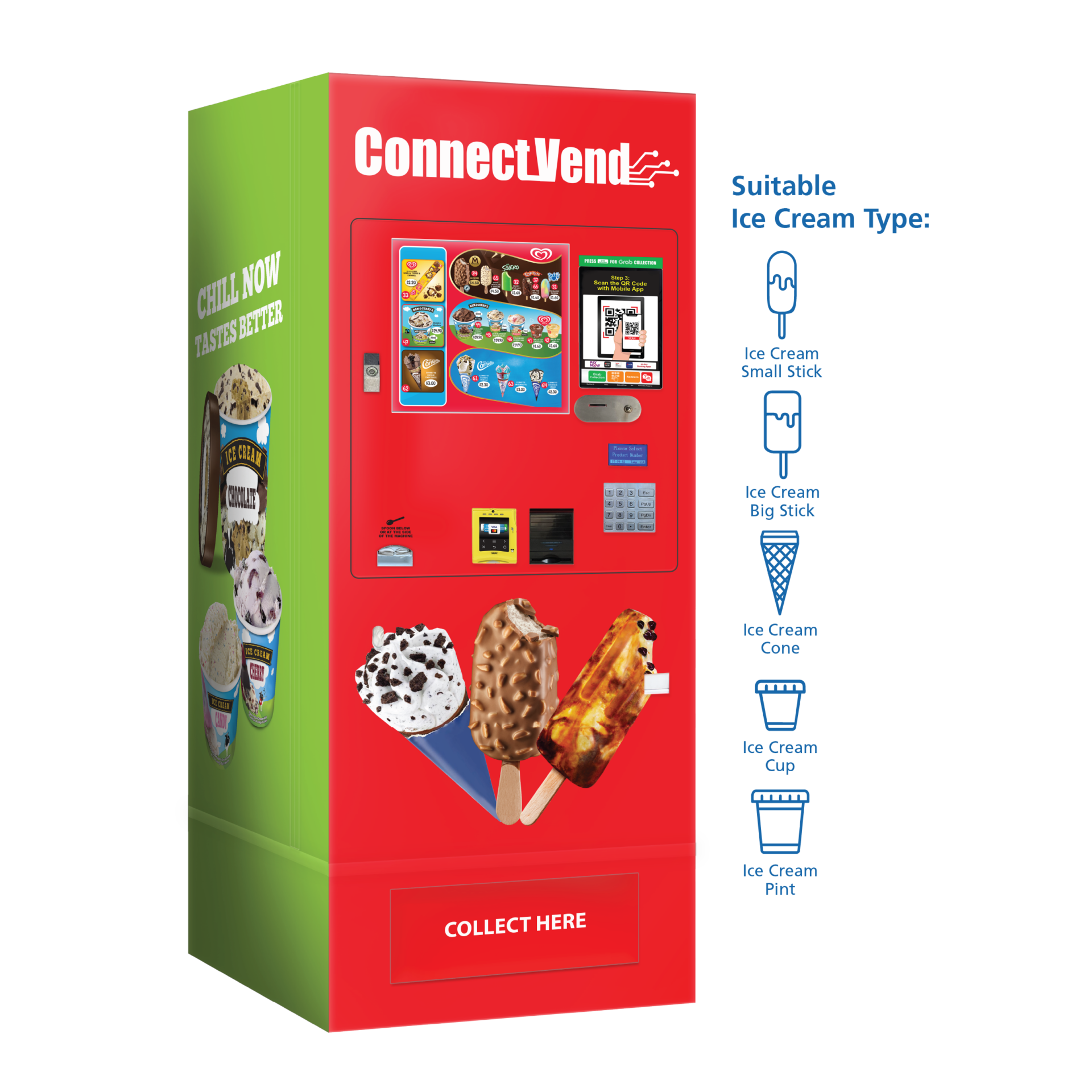

This is Happy Ice's flagship machine: ConnectVend, is designed and used to connecting brand with customers

ConnectVend is special designed to work with the most stringent products: ice cream, to be operated at -24ºC. It can withstand outdoor tropical climate up to 43ºC. In the event of power disruption to the machine, the ice cream can be kept inside the machine for up to 12 hours, which gives operation team ample time to respond to the incident. The machine dispensing racking can also be customized to fit various frozen products sizes to the machine. We can dispense frozen product as small as a Popsicle stick to as big as a bento box.

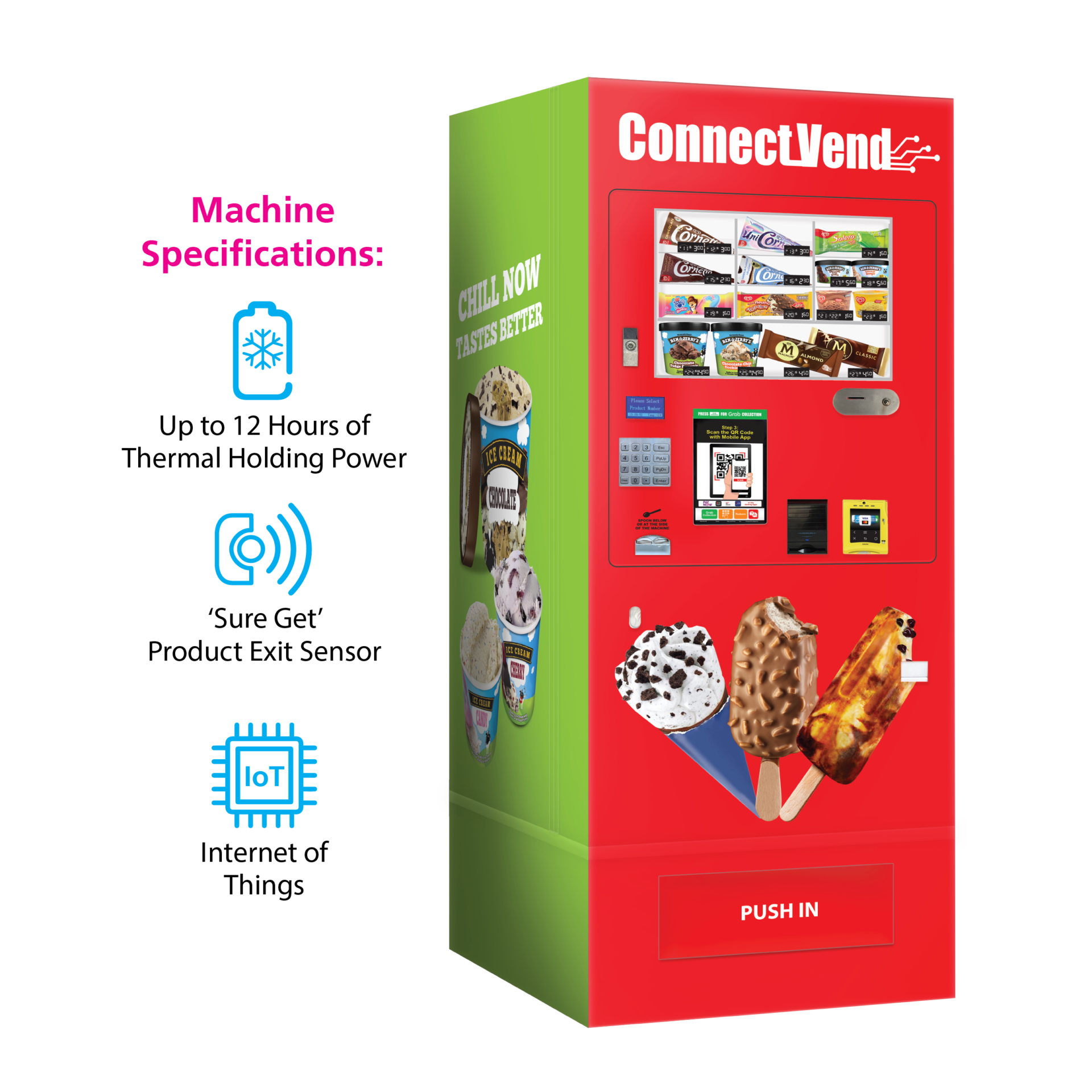

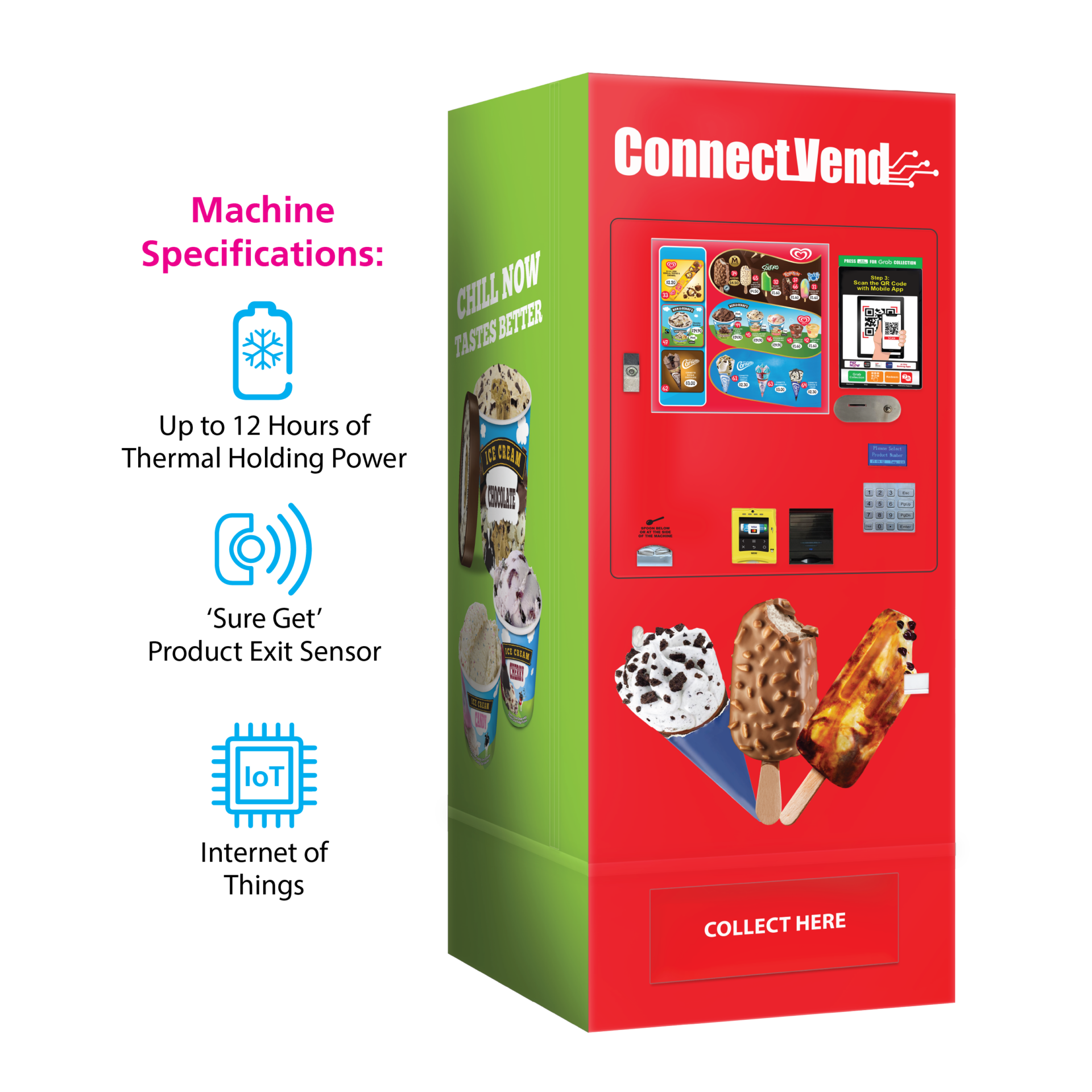

Size (W x D x H cm): 72 x 90 x 198
Weight: 280 kg
SKU & Capacity: 12 SKU, 430 pcs
Rated Power: 200 watt
Thermal Holding Power: 12 hours
Operating Temperature: -24ºC
Remote Monitoring: Yes
Support Payment: Cash & Cashless
Dual Screen: W45 x H34 cm LED Light Box, 10” Touch Screen (QR payment, Online Redemption, Marketing Video)

ConnectVend Technical Specification

General Features:

• Product Menu: 22” LED ultra clear light box, and 10” digital screen
• MDB compliant
• Cash (bill and coin) and cashless system compatible
• Guaranteed product delivery; if not, no money deduction
• Remote monitoring capability (live-view temperature, sales, inventory etc)
• Purchase-with-Purchase feature: second purchase to enjoy discount
• Available of spoon dispenser and plastic bag dispenser

Refrigeration

• Energy efficient (6x times more energy efficient than conventional frozen vending machine)
• High efficient refrigerant: R600a
• Auto defrost. During defrost, able to maintain all the time to be below freezing point, to ensure ice cream quality
• 12hrs thermal holding power (during power loss, can hold 12hours to keep ice cream remain safe)

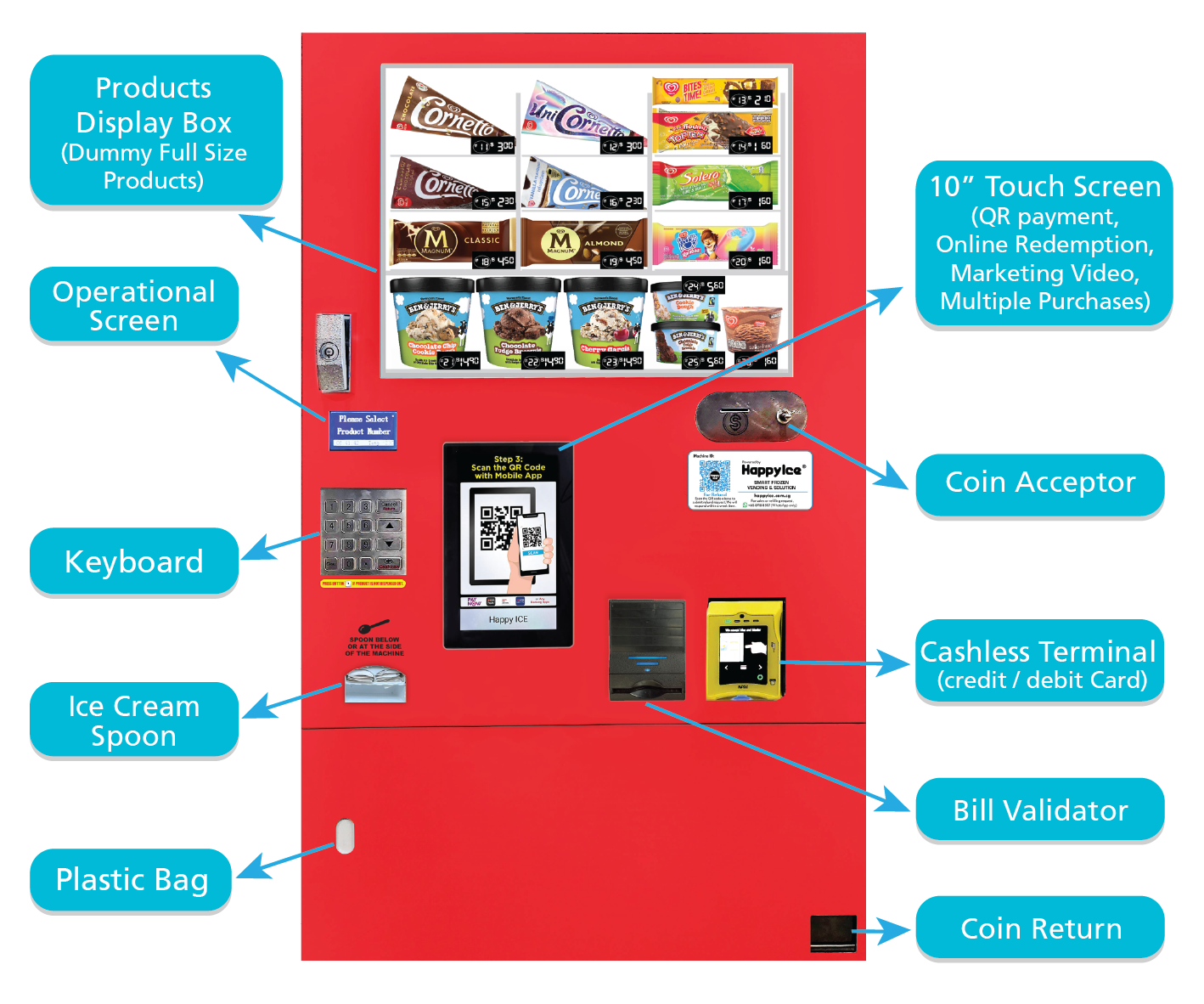

Machine’s components (Outer view)

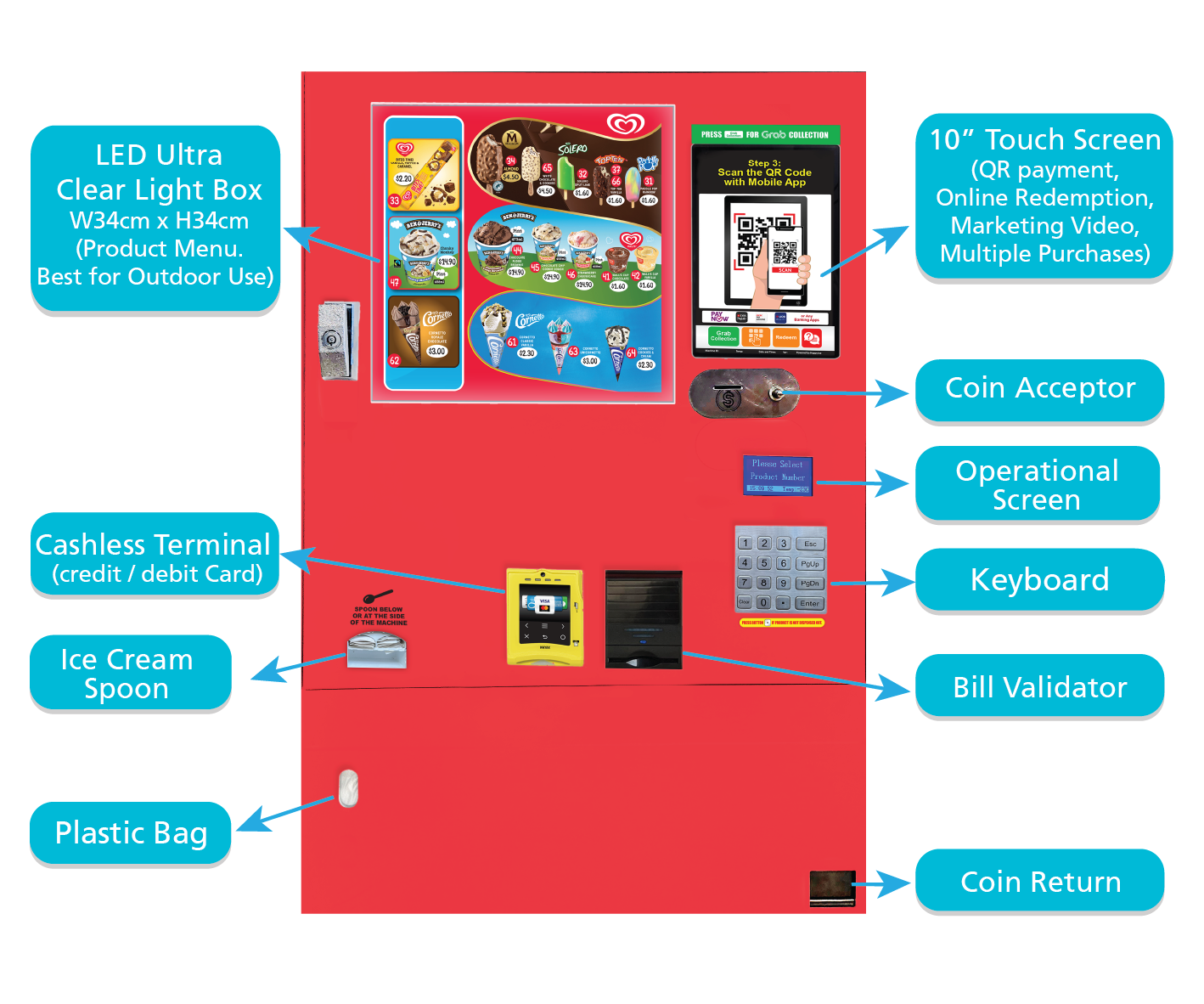

ConnectVend features a dual-screen concept: 22" ultra-clear LED menu screen that ensures visibility even in direct outdoor sunlight, allowing customers to easily view products and pricing at a glance, and a 10" touch screen for seamless ordering and redemption.

The machine is designed to accept various payment methods. Operators add in MDB-compatible devices to facilitate cash, credit card, and QR payments.

Machine’s components (Inner side)

By adopting a modular design for the controller components, this approach ensures lower replacement costs and facilitates easy upgrades.

Live view machine status

Cloud-based live view system that enables real-time monitoring of crucial operational aspects:

1) Inventory Management: Track inventory levels remotely to ensure popular products are always available.

2) Sales Monitoring: Access live sales data to analyze trends and make informed decisions on promotions and restocking.

3) Error Reporting: Receive instant notifications about malfunctions, allowing for quick resolutions to minimize downtime.

4) Coin and Bill Equipment Condition: Monitor the status of payment mechanisms, ensuring they function properly and alerting operators to issues.

5) Remote Accessibility: Access machine status from any device, providing flexibility in management.

6) Update promo, photo and video: Perform these update remotely and effortlessly at your fingertips

By utilizing this cloud-based system, operators can enhance efficiency, maintain product availability, and respond quickly to challenges.

Engineered for outdoor use

ConnectVend is designed to operate optimally for ice cream products even in harsh outdoor condition for hot temperature and humidity conditions

Climate Class: T (up to 43 °C)

Hybrid Cooling system

This patented technology is the core innovation that enables 6x times more energy efficient than conventional frozen vending machine, 30% faster cooling speed, and 12 hours of thermal holding power.

Cooling performance (condition: outdoor, no shelter)

ConnectVend's temperature graph effectively demonstrates its ability to maintain optimal frozen storage conditions for ice cream, even in direct sunlight challenging outdoor environments and during periods of high sales volume.

Auto Defrost Cycle

Our purpose-built defrost system ensures superior frozen machine performance by completing the defrost cycle within 15 minutes while maintaining temperatures consistently below 0°C, featuring automatic defrost every 15 hours.

This rapid and efficient defrosting process minimizes temperature fluctuations, significantly reducing the risk of thermal shock to the ice cream, which can negatively impact its texture and quality—especially crucial for premium ice cream and gelato.

Here's the highlight of defrost cycle:

1) Machine Set Point (-25°C): the compressor stops running once this temperature is reached.
2) Defrost: Evaporator is heated rapidly to melt any frost buildup, completing the process within 15 minutes.
3) Temperature Maintenance: During the heating of the evaporator and until defrosting is finished, the machine's temperature gradually rises to -5°C. Machine temperature remains below 0°C throughout the defrost cycle
4) Post-Defrost Cooling: The compressor restarts, and utilizing our patented hybrid-cooling technology, the machine efficiently cools down to -18°C in just 10 minutes.

Thermal Holding Power

*Actual ice cream temperature would be 2ºc to 5ºc lower than machine temperature.

In the event of power loss—whether due to a power trip caused by lightning, overloads, or unintentional shut-offs—this advanced system maintains a stable, low temperature.

Key Benefits:

Preserving product quality: Keeps ice cream frozen for up to 12 hours without electricity

Reduced Losses: By maintaining the ideal serving temperature for longer periods, ConnectVend significantly reduces product spoilage and waste, enhancing overall profitability.

Freezer System Electrical Schematics
